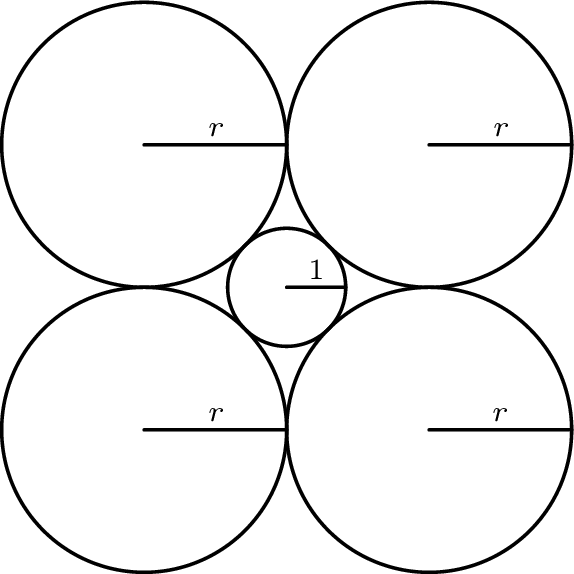

You can express the line connecting the centers of an outer circle and the inner circle in two different ways. You can add the radius of both circles to get $r+1.$ You can also add the radius of two outer circles and use a $45-45-90$ triangle to get $\frac{2r}{\sqrt{2}}=r\sqrt{2}.$ Since both expressions represent the same length, you can set them equal to each other. $$\begin{array}{rl}r+1& =r\sqrt{2}\\ 1& =r(\sqrt{2}-1)\end{array}$$ $$r=\frac{1}{\sqrt{2}-1}=\frac{1(\sqrt{2}+1)}{(\sqrt{2}-1)(\sqrt{2}+1)}=\frac{\sqrt{2}+1}{2-1}=\boxed{1+\sqrt{2}}$$
