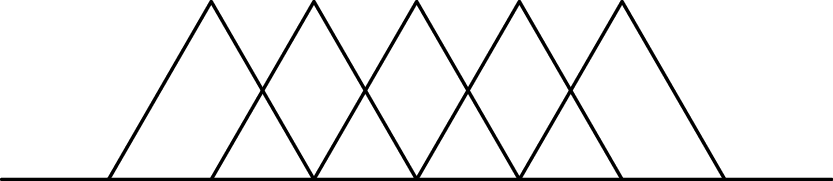

First, we calculate the area of 1 triangle. For an equilateral triangle with side $s$, its area is $\frac{\sqrt{3}{s}^2}{4}$. If the side of the equilateral triangle is $2\sqrt{3}$, the area of one such triangle is $3\sqrt{3}$. There are 5 equilateral triangles in total, overlapping by an area of 4 smaller equilateral triangles. Each smaller triangle is one fourth as big as the big equilateral triangles. Therefore, we subtract the overlapping area, which is equivalent to the area of 1 big equilateral triangle. Hence, the total area is equal to the area of 4 equilateral triangles, which is $3\sqrt{3}\times 4=12\sqrt{3}$. $\boxed{12\sqrt{3}}$
