International Mathematical Olympiad Shortlisted Problems

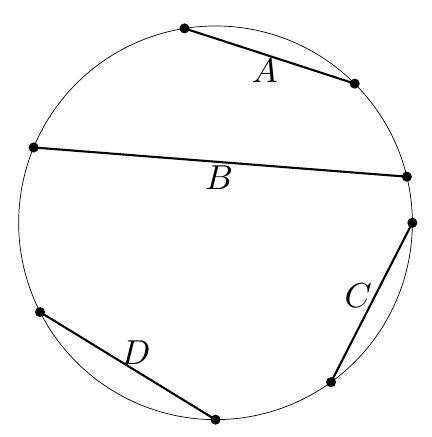

Given a circular arrangement of $[0,n]=\{0,1,\dots ,n\}$, we define a $k$-chord to be a (possibly degenerate) chord whose (possibly equal) endpoints add up to $k$. We say that three chords of a circle are aligned if one of them separates the other two. Say that $m⩾3$ chords are aligned if any three of them are aligned. For instance, in Figure 1, $A,B$, and $C$ are aligned, while $B,C$, and $D$ are not.

Figure 1 Figure 2

Claim. In a beautiful arrangement, the $k$-chords are aligned for any integer $k$.

Proof. We proceed by induction. For $n⩽3$ the statement is trivial. Now let $n⩾4$, and proceed by contradiction. Consider a beautiful arrangement $S$ where the three $k$-chords $A,B,C$ are not aligned. If $n$ is not among the endpoints of $A,B$, and $C$, then by deleting $n$ from $S$ we obtain a beautiful arrangement $S\backslash \{n\}$ of $[0,n-1]$, where $A,B$, and $C$ are aligned by the induction hypothesis. Similarly, if 0 is not among these endpoints, then deleting 0 and decreasing all the numbers by 1 gives a beautiful arrangement $S\backslash \{0\}$ where $A,B$, and $C$ are aligned. Therefore both 0 and $n$ are among the endpoints of these segments. If $x$ and $y$ are their respective partners, we have $n⩾0+x=k=n+y⩾n$. Thus 0 and $n$ are the endpoints of one of the chords; say it is $C$.

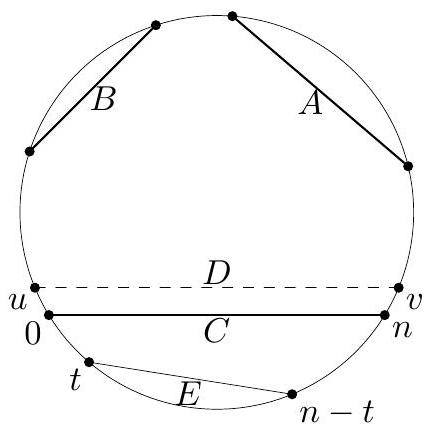

Let $D$ be the chord formed by the numbers $u$ and $v$ which are adjacent to 0 and $n$ and on the same side of $C$ as $A$ and $B$, as shown in Figure 2. Set $t=u+v$. If we had $t=n$, the $n$-chords $A$, $B$, and $D$ would not be aligned in the beautiful arrangement $S\backslash \{0,n\}$, contradicting the induction hypothesis. If $t<n$, then the $t$-chord from 0 to $t$ cannot intersect $D$, so the chord $C$ separates $t$ and $D$. The chord $E$ from $t$ to $n-t$ does not intersect $C$, so $t$ and $n-t$ are on the same side of $C$. But then the chords $A,B$, and $E$ are not aligned in $S\backslash \{0,n\}$, a contradiction. Finally, the case $t>n$ is equivalent to the case $t<n$ via the beauty-preserving relabelling $x\mapsto n-x$ for $0⩽x⩽n$, which sends $t$-chords to $(2n-t)$-chords. This proves the Claim.

Having established the Claim, we prove the desired result by induction. The case $n=2$ is trivial. Now assume that $n⩾3$. Let $S$ be a beautiful arrangement of $[0,n]$ and delete $n$ to obtain the beautiful arrangement $T$ of $[0,n-1]$. The $n$-chords of $T$ are aligned, and they contain every point except 0. Say $T$ is of Type 1 if 0 lies between two of these $n$-chords, and it is of Type 2 otherwise; i.e., if 0 is aligned with these $n$-chords. We will show that each Type 1 arrangement of $[0,n-1]$ arises from a unique arrangement of $[0,n]$, and each Type 2 arrangement of $[0,n-1]$ arises from exactly two beautiful arrangements of $[0,n]$.

If $T$ is of Type 1, let 0 lie between chords $A$ and $B$. Since the chord from 0 to $n$ must be aligned with $A$ and $B$ in $S,n$ must be on the other arc between $A$ and $B$. Therefore $S$ can be recovered uniquely from $T$. In the other direction, if $T$ is of Type 1 and we insert $n$ as above, then we claim the resulting arrangement $S$ is beautiful. For $0<k<n$, the $k$-chords of $S$ are also $k$-chords of $T$, so they are aligned. Finally, for $n<k<2n$, notice that the $n$-chords of $S$ are parallel by construction, so there is an antisymmetry axis $\ell$ such that $x$ is symmetric to $n-x$ with respect to $\ell$ for all $x$. If we had two $k$-chords which intersect, then their reflections across $\ell$ would be two $(2n-k)$-chords which intersect, where $0<2n-k<n$, a contradiction.

If $T$ is of Type 2, there are two possible positions for $n$ in $S$, on either side of 0. As above, we check that both positions lead to beautiful arrangements of $[0,n]$.

Hence if we let $M_n$ be the number of beautiful arrangements of $[0,n]$, and let $L_n$ be the number of beautiful arrangements of $[0,n-1]$ of Type 2, we have $$M_n=\left(M_{n-1}-L_{n-1}\right)+2L_{n-1}=M_{n-1}+L_{n-1}$$ It then remains to show that $L_{n-1}$ is the number of pairs $(x,y)$ of positive integers with $x+y=n$ and $\gcd (x,y)=1$. Since $n⩾3$, this number equals $\phi (n)=\#\{x:1⩽x⩽n,\gcd (x,n)=1\}$.

To prove this, consider a Type 2 beautiful arrangement of $[0,n-1]$. Label the positions $0,\dots ,n-1(\mathrm{mod}n)$ clockwise around the circle, so that number 0 is in position 0. Let $f(i)$ be the number in position $i$; note that $f$ is a permutation of $[0,n-1]$. Let $a$ be the position such that $f(a)=n-1$.

Since the $n$-chords are aligned with 0, and every point is in an $n$-chord, these chords are all parallel and $$f(i)+f(-i)=n\text{ for all }i$$ Similarly, since the $(n-1)$-chords are aligned and every point is in an $(n-1)$-chord, these chords are also parallel and $$f(i)+f(a-i)=n-1\text{ for all }i$$ Therefore $f(a-i)=f(-i)-1$ for all $i$; and since $f(0)=0$, we get $$\begin{array}{c}f(-ak)=k\text{ for all }k\end{array}\text{\hspace{1em}(1)}$$ Recall that this is an equality modulo $n$. Since $f$ is a permutation, we must have $(a,n)=1$. Hence $L_{n-1}⩽\phi (n)$.

To prove equality, it remains to observe that the labeling (1) is beautiful. To see this, consider four numbers $w,x,y,z$ on the circle with $w+y=x+z$. Their positions around the circle satisfy $(-aw)+(-ay)=(-ax)+(-az)$, which means that the chord from $w$ to $y$ and the chord from $x$ to $z$ are parallel. Thus (1) is beautiful, and by construction it has Type 2. The desired result follows.

---

Alternative solution.

Notice that there are exactly $N$ irreducible fractions $f_1<\cdots <f_N$ in $(0,1)$ whose denominator is at most $n$, since the pair $(x,y)$ with $x+y⩽n$ and $(x,y)=1$ corresponds to the fraction $x/(x+y)$. Write $f_i=\frac{a_i}{b_i}$ for $1⩽i⩽N$.

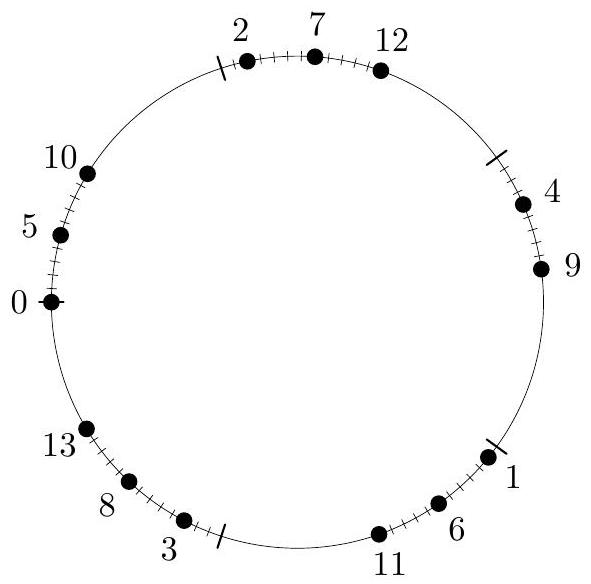

We begin by constructing $N+1$ beautiful arrangements. Take any $\alpha \in (0,1)$ which is not one of the above $N$ fractions. Consider a circle of perimeter 1. Successively mark points $0,1,2,\dots ,n$ where 0 is arbitrary, and the clockwise distance from $i$ to $i+1$ is $\alpha$. The point $k$ will be at clockwise distance $\{k\alpha \}$ from 0, where $\{r\}$ denotes the fractional part of $r$. Call such a circular arrangement cyclic and denote it by $A(\alpha )$. If the clockwise order of the points is the same in $A\left({\alpha }_1\right)$ and $A\left({\alpha }_2\right)$, we regard them as the same circular arrangement. Figure 3 shows the cyclic arrangement $A(3/5+ϵ)$ of $[0,13]$ where $ϵ>0$ is very small.

Figure 3

If $0⩽a,b,c,d⩽n$ satisfy $a+c=b+d$, then $a\alpha +c\alpha =b\alpha +d\alpha$, so the chord from $a$ to $c$ is parallel to the chord from $b$ to $d$ in $A(\alpha )$. Hence in a cyclic arrangement all $k$-chords are parallel. In particular every cyclic arrangement is beautiful.

Next we show that there are exactly $N+1$ distinct cyclic arrangements. To see this, let us see how $A(\alpha )$ changes as we increase $\alpha$ from 0 to 1. The order of points $p$ and $q$ changes precisely when we cross a value $\alpha =f$ such that $\{pf\}=\{qf\}$; this can only happen if $f$ is one of the $N$ fractions $f_1,\dots ,f_N$. Therefore there are at most $N+1$ different cyclic arrangements.

To show they are all distinct, recall that $f_i=a_i/b_i$ and let $ϵ>0$ be a very small number. In the arrangement $A\left(f_i+ϵ\right)$, point $k$ lands at $\frac{k{a}_i\left(\mathrm{mod}{b}_i\right)}{b_i}+kϵ$. Therefore the points are grouped into $b_i$ clusters next to the points $0,\frac{1}{b_i},\dots ,\frac{b_i-1}{b_i}$ of the circle. The cluster following $\frac{k}{b_i}$ contains the numbers congruent to $k{a}_i^{-1}$ modulo $b_i$, listed clockwise in increasing order. It follows that the first number after 0 in $A\left(f_i+ϵ\right)$ is $b_i$, and the first number after 0 which is less than $b_i$ is $a_i^{-1}\left(\mathrm{mod}{b}_i\right)$, which uniquely determines $a_i$. In this way we can recover $f_i$ from the cyclic arrangement. Note also that $A\left(f_i+ϵ\right)$ is not the trivial arrangement where we list $0,1,\dots ,n$ in order clockwise. It follows that the $N+1$ cyclic arrangements $A(ϵ),A\left(f_1+ϵ\right),\dots ,A\left(f_N+ϵ\right)$ are distinct.

Let us record an observation which will be useful later: $$\begin{array}{c}\text{ if }{f}_i<\alpha <f_{i+1}\text{ then }0\text{ is immediately after }{b}_{i+1}\text{ and before }{b}_i\text{ in }A(\alpha )\text{. }\end{array}\text{\hspace{1em}(2)}$$ Indeed, we already observed that $b_i$ is the first number after 0 in $A\left(f_i+ϵ\right)=A(\alpha )$. Similarly we see that $b_{i+1}$ is the last number before 0 in $A\left(f_{i+1}-ϵ\right)=A(\alpha )$.

Finally, we show that any beautiful arrangement of $[0,n]$ is cyclic by induction on $n$. For $n⩽2$ the result is clear. Now assume that all beautiful arrangements of $[0,n-1]$ are cyclic, and consider a beautiful arrangement $A$ of $[0,n]$. The subarrangement $A_{n-1}=A\backslash \{n\}$ of $[0,n-1]$ obtained by deleting $n$ is cyclic; say $A_{n-1}=A_{n-1}(\alpha )$.

Let $\alpha$ be between the consecutive fractions $\frac{p_1}{q_1}<\frac{p_2}{q_2}$ among the irreducible fractions of denominator at most $n-1$. There is at most one fraction $\frac{i}{n}$ in $\left(\frac{p_1}{q_1},\frac{p_2}{q_2}\right)$, since $\frac{i}{n}<\frac{i}{n-1}⩽\frac{i+1}{n}$ for $0<i⩽n-1$.

Case 1. There is no fraction with denominator $n$ between $\frac{p_1}{q_1}$ and $\frac{p_2}{q_2}$.

In this case the only cyclic arrangement extending $A_{n-1}(\alpha )$ is $A_n(\alpha )$. We know that $A$ and $A_n(\alpha )$ can only differ in the position of $n$. Assume $n$ is immediately after $x$ and before $y$ in $A_n(\alpha )$. Since the neighbors of 0 are $q_1$ and $q_2$ by (2), we have $x,y⩾1$.

Figure 4

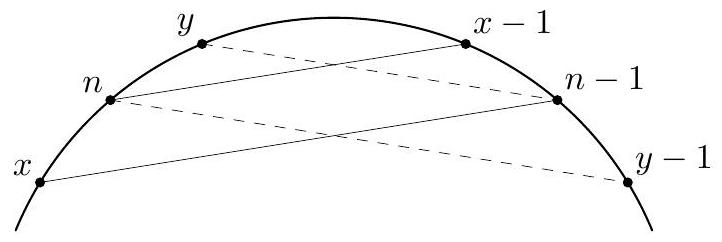

In $A_n(\alpha )$ the chord from $n-1$ to $x$ is parallel and adjacent to the chord from $n$ to $x-1$, so $n-1$ is between $x-1$ and $x$ in clockwise order, as shown in Figure 4. Similarly, $n-1$ is between $y$ and $y-1$. Therefore $x,y,x-1,n-1$, and $y-1$ occur in this order in $A_n(\alpha )$ and hence in $A$ (possibly with $y=x-1$ or $x=y-1$).

Now, $A$ may only differ from $A_n(\alpha )$ in the location of $n$. In $A$, since the chord from $n-1$ to $x$ and the chord from $n$ to $x-1$ do not intersect, $n$ is between $x$ and $n-1$. Similarly, $n$ is between $n-1$ and $y$. Then $n$ must be between $x$ and $y$ and $A=A_n(\alpha )$. Therefore $A$ is cyclic as desired.

Case 2. There is exactly one $i$ with $\frac{p_1}{q_1}<\frac{i}{n}<\frac{p_2}{q_2}$.

In this case there exist two cyclic arrangements $A_n\left({\alpha }_1\right)$ and $A_n\left({\alpha }_2\right)$ of the numbers $0,\dots ,n$ extending $A_{n-1}(\alpha )$, where $\frac{p_1}{q_1}<{\alpha }_1<\frac{i}{n}$ and $\frac{i}{n}<{\alpha }_2<\frac{p_2}{q_2}$. In $A_{n-1}(\alpha ),0$ is the only number between $q_2$ and $q_1$ by (2). For the same reason, $n$ is between $q_2$ and 0 in $A_n\left({\alpha }_1\right)$, and between 0 and $q_1$ in $A_n\left({\alpha }_2\right)$.

Letting $x=q_2$ and $y=q_1$, the argument of Case 1 tells us that $n$ must be between $x$ and $y$ in $A$. Therefore $A$ must equal $A_n\left({\alpha }_1\right)$ or $A_n\left({\alpha }_2\right)$, and therefore it is cyclic.

This concludes the proof that every beautiful arrangement is cyclic. It follows that there are exactly $N+1$ beautiful arrangements of $[0,n]$ as we wished to show.
